OGI CSEE PSpice Downloads, library and example files OGI CSEE PSpice Downloads, example and library files Bipolar parts for EE561 Contains: ece571.lib model library file with npn44V, pnplat44V, pnp44v based on parameters from tables in Grey and Meyer. Ece571. Ac Ryan Playon Hd Firmware Upgrade. olb symbol library file, npn44v_demo2.opj Capture/PSpice demo project file, and 5 support files for npn44v_demo2.opj. Click above to download the zip file. Unzip the file in a convenient directory on your PC.
The OrCAD® / Allegro® Starter Library 1.0 is a free library that. Continue distribution of PSpice Schematics as a download as. All OrCAD® downloads. Browse Cadence PSpice Model Library. Cadence® PSpice technology offers more than 33,000 models covering various types of devices that are included in the PSpice. SLOA070 Using Texas Instruments Spice Models in PSpice 5 Click OK, and the library should create with no errors: Figure 9. Status File Created by a Good Spice Model.
To run the demo file: Start Capture (any version 9.2 - 16) then: file, open, project, then brouse for and select npn44v_demo2.opj. The demo runs collector curves for the npn44V part. You can place the parts in your own schematic by adding the part library. From within Capture: place parts, add library, then browse for and add ece571.olb. Before you run the simulation on your schematic you will need to add the model library file.

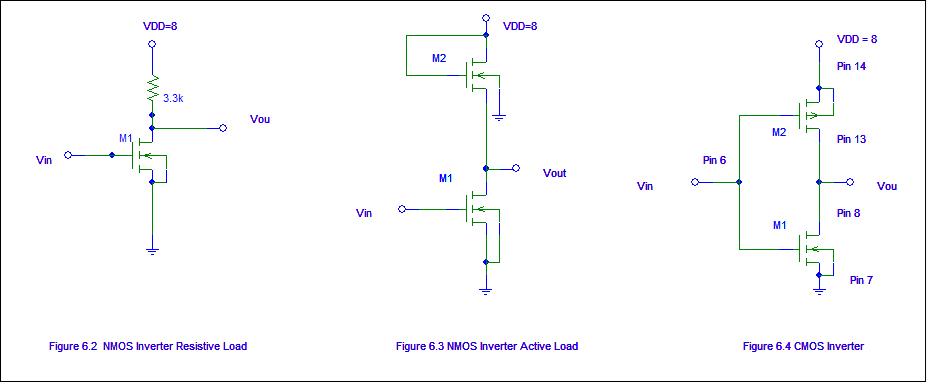

Within the simulation profile window click on the libraries tab and browse for ece571.lib and add it to the list of libraries. John Hunt johnhunt (at) csee.ogi.edu 10/2006 GM4_MOS models from Gray and Meyer for EE565 PSpice model library file for simple CMOS parts 3uNMOS, 3uPMOS: GM4_mos.lib Capture symbol file for 3uNMOS, 3uPMOS: GM4_MOS.olb Contains: GM4_mos.lib model library file, GM4_mos.opj custom part library with 3uNMOS, 3uPMOS parts DC_DEMO.opj Capture/PSpice demo project file, and support files for DC_DEMO.opj. DC_DEMO.opj plots the drain curves for the 3uPMOS part. Click above to download the zip file. Unzip the file in a convenient directory on your PC. Contains: GM4_mos.lib model library file, GM4_mos.opj custom part library with 3uNMOS, 3uPMOS parts AC_DEMO.opj Capture/PSpice demo project file, and support files for AC_DEMO.opj. AC_DEMO.opj plots the AC response for determining Ft for the 3uPMOS part.
Click above to download the zip file. Unzip the file in a convenient directory on your PC. John Hunt johnhunt (at) csee.ogi.edu 4/2002 MOSIS TSMC process for EE563 and EE565 Contains: TSMCp25.lib PSpice model library file, tsmcp25.olb custom part library with TMSC_NMOS, TMSC_PMOS parts, tsmc_demo.opj Capture/PSpice demo project file, and support files for tsmc_demo.opj. Click above to download the zip file. Unzip the file in a convenient directory on your PC.
To run the demo file: Start Capture 15.7 (or later), then: file, open, project, and select tsmc_demo.opj. The demo runs a bias analysis on a TSMC_NMOS and TMSC_PMOS part. Download Free Home-Tek Penguin Steam Cleaner Manual.
It should be self-contained and ready to run. To use the TSMC parts in your own schematic: You will need to add the part library and the PSpice model library. From within Capture: place parts, add library, then browse for and add tsmcp25.olb. You should find tsmcp25.olb in the directory where you unzipped the demo zip file. This will allow you to place the parts on your schematic.
Before you run the simulation on your schematic you will also need to add the PSpice model library file. Within the simulation profile window click on the 'Configuration Files' tab, select 'Library' in the category list. Then browse for tmscp25.lib and click on 'Add to Design' to add it to the list of PSpice model libraries. John Hunt johnhunt (at) csee.ogi.edu 4/2007 Maxim QC960 bipolar process for EE565 Contains: q9ap27.lib model library file, qc960_demo.opj Capture/PSpice demo project file, and 4 support files for qc960_demo.opj. The demo runs the collector curves for the h14e05 NPN part.
See section on TSMC for download instructions. John Hunt johnhunt (at) csee.ogi.edu 7/2008 OrCAD 16.0 Demo Edition download (July 2008 version) This download is only available to OGI students 1.
Click on the link above to download the OrCAD160demo.zip file; select a convenient folder on your PC as the destination. Create a new folder and unzip the file there. After unzipping, there will be 13 files including 'setup.exe'. Click on 'setup.exe'. An OrCAD Setup window will appear.
Agree to the terms and follow the prompts to complete the installation. The path to Capture/PSpice is: Start, Programs, Orcad 16.0 Demo, OrCAD Capture CIS Demo.
You may want to create a shortcut on your desktop for Capture. PSpice limitations in 16.0 Demo version: 64 nodes, 20 transistors. John Hunt johnhunt (at) csee.ogi.edu 7/2008 OrCAD 9.2 Lite Edition download (May 2001 version, old but works and is more compact to download and install) This download is only available to OGI students 1. Click on the link above to download the Orcad_lite_9_2.zip file; select a convenient folder on your PC as the destination. Create a new folder and unzip the file there. After unzipping, there will be 55 files. Click on setup.exe 4.
